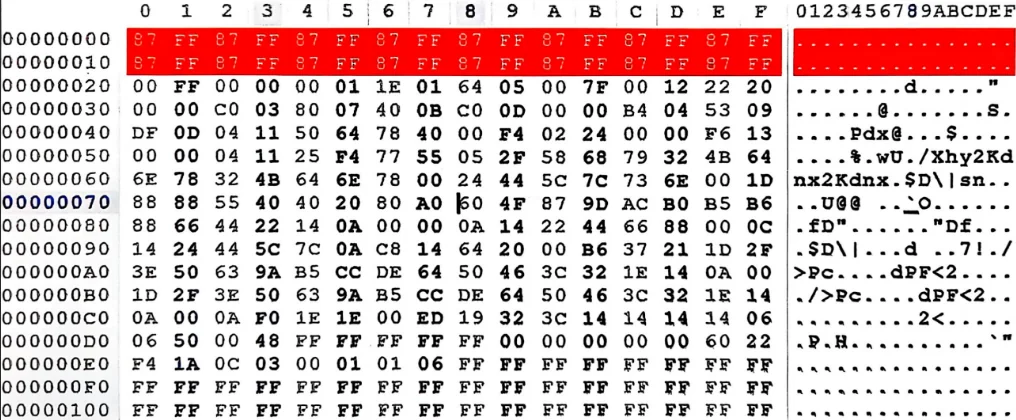

The Jiangling Yusheng 24C64 example records 3840 KM. Its notes show a byte swap from 87 FF to FF 87, a complementary expression and a multiplier of 32. The images retain the highlighted data layout.
- Application
- Jiangling Yusheng
- Chip reference
- 24C64
Recorded data and annotated images
- Jiangling Yusheng 24C64 EEPROM
- Recorded mileage: 3840KM
- 87 FF swapped to FF 87 (inverted) FF FF – FF 87 = 0078(convert hexadecimal to decimal)
- multiplied by 32
