The Yutong 6708DH bus reference identifies a 9S12HA32 instrument and includes a connection image. The data notes describe the highlighted hexadecimal values and repeated groups, which should be read alongside the original annotated example.
- Application
- Yutong 6708DH bus
- Chip reference
- 9S12HA32

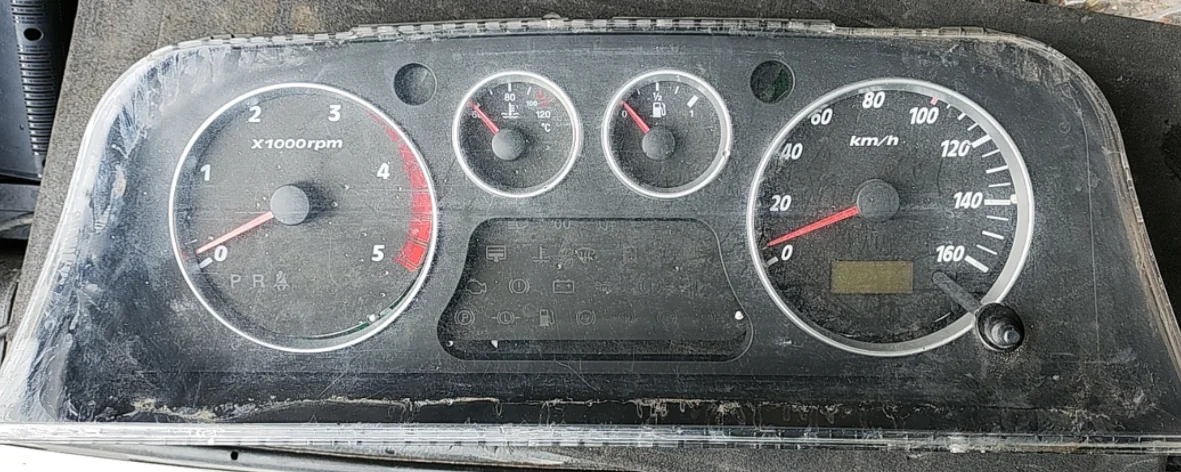

Vehicle, instrument and board identification

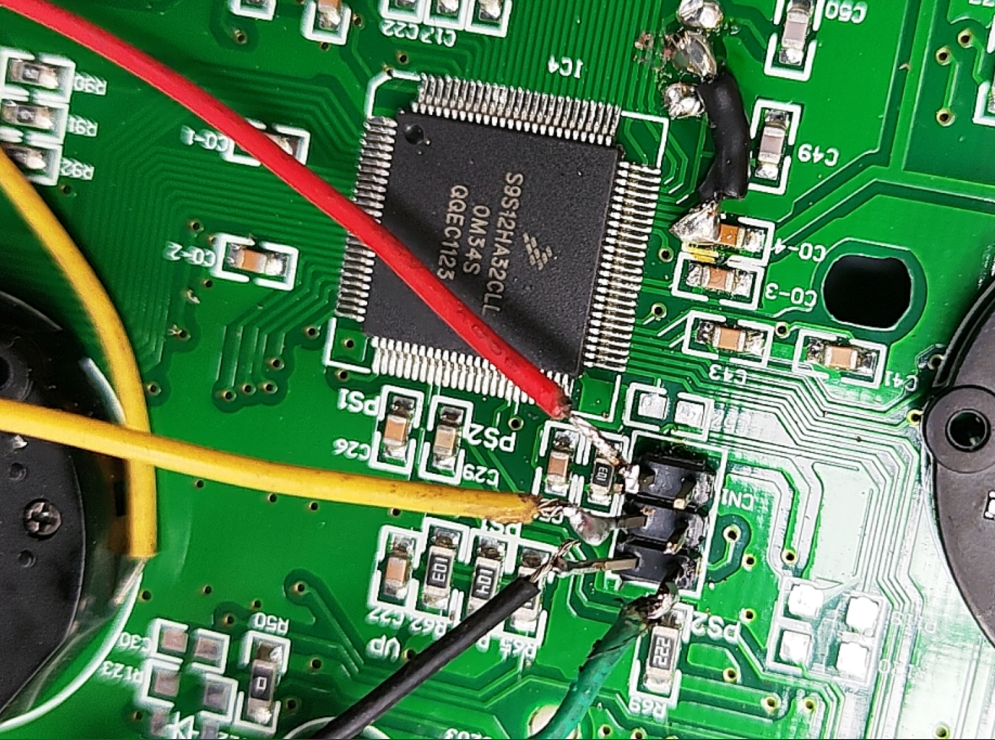

Programming connections
Recorded data notes
- Yutong Bus 6708DH _9S12HA32
- The red box shows the direct conversion of mileage to hexadecimal.
- The positions are different: 00 06 45 06.
- There are three groups in total, with fixed positions but an unfixed number of subgroups.
