The Sprinter A906 instrument carries part reference A 906 542 1201 and a 25640 memory reference. Its data notes retain the 376,929 km and 370,929 km examples, together with the recorded representation and complementary-value check.
- Application
- Mercedes-Benz Sprinter A906
- Chip reference
- 25640
- Instrument reference
- A 906 542 1201
Instrument and module identification
Recorded data and annotated images

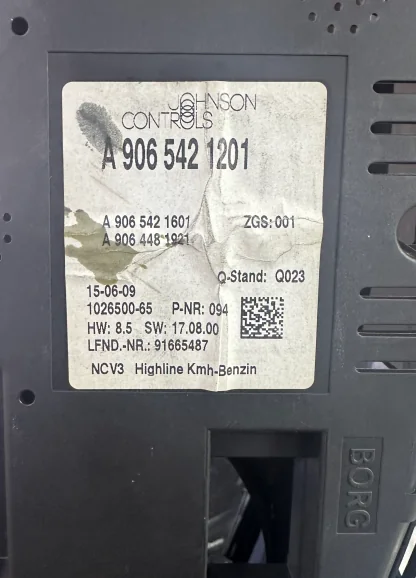

- Mercedes-Benz Sprinter A906 cluster, part reference A 906 542 1201.
- The supplied images document 376,929 km and 370,929 km reference values.

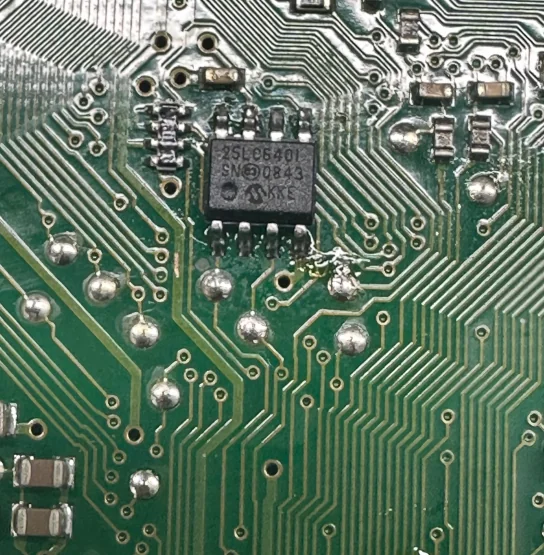

- The source notes identify a 25640 EEPROM and a mileage-times-1000 hexadecimal representation.
- The source also describes complementary-value verification; confirm the exact layout against an untouched original file.
